Lab Vacuum Pump
A completely oil-free, diaphragm-type vacuum pump built for lab bench use, requiring no lubrication and running with minimal noise and maintenance.
- No lubrication required
- Noiseless operation
- Portable design
- Completely oil-free construction
- Minimal maintenance
- Aluminium die-cast components for durability
- 2-ply nylon-reinforced neoprene diaphragms
- Stainless steel 316 valves
- Built-in micro-suction filter
- Large bearings for smooth performance
Construction
All parts are made from specially graded aluminium die-cast material for light weight and good strength. Diaphragms use reinforced neoprene rubber, while valve components use stainless steel for corrosion resistance.
| Model | Max Flow (L/min) | Max Vacuum (inches HG) | Max Pressure (PSI) | Motor (HP) |
|---|---|---|---|---|
| LVP-15 | 15 | 22" | 25 | 1/20 |
| LVP-25 | 15 | 27" | 35 | 1/16 |
| LVP-45 | 45 | 22" | 35 | 1/8 |
| LVP-75 | 45 | 27" | 55 | 1/4 |
| LVP-100 Piston | 60 | 29.5" | 100 | 3/4 |
Optional Accessories
- Vacuum pump gauge

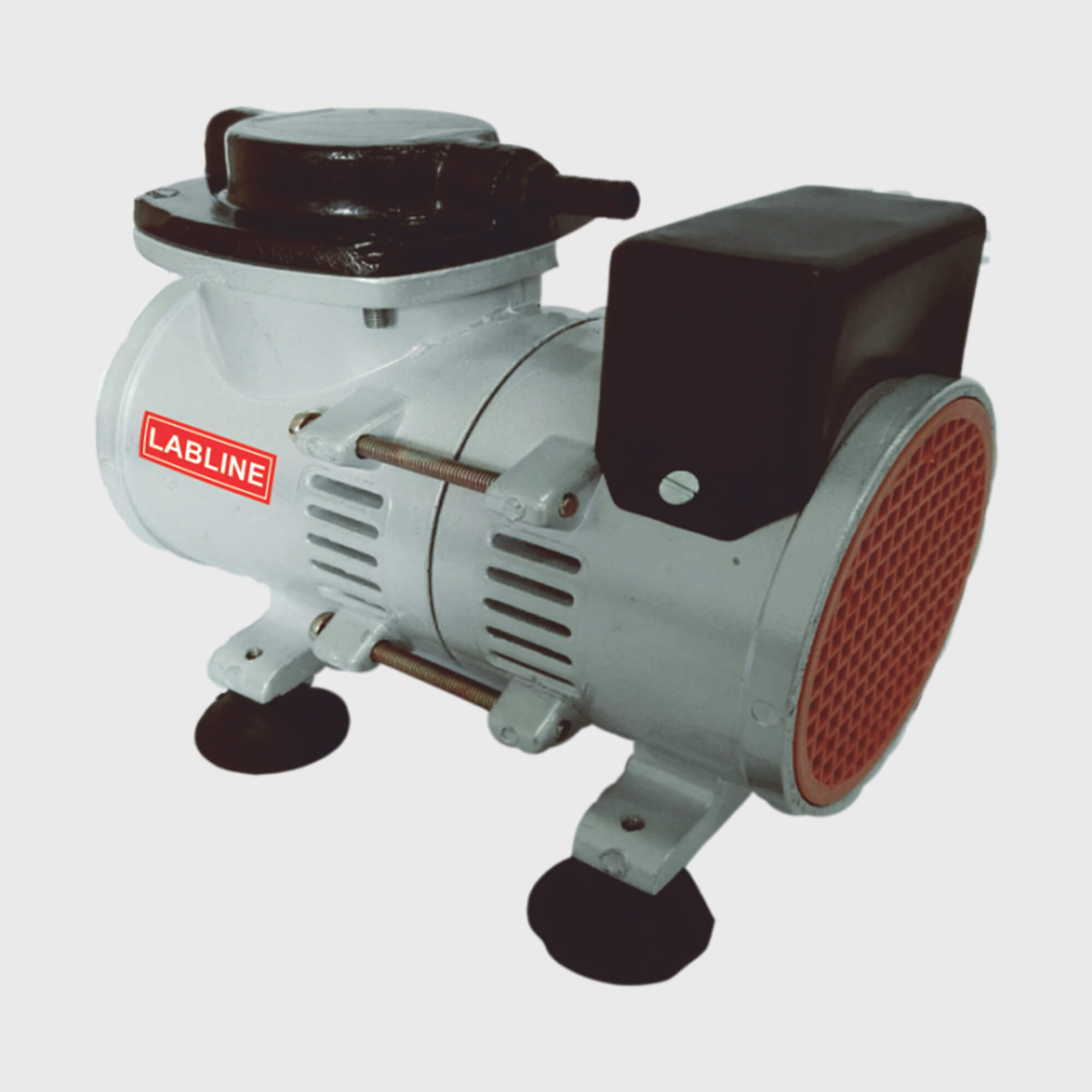

Diaphragm Type

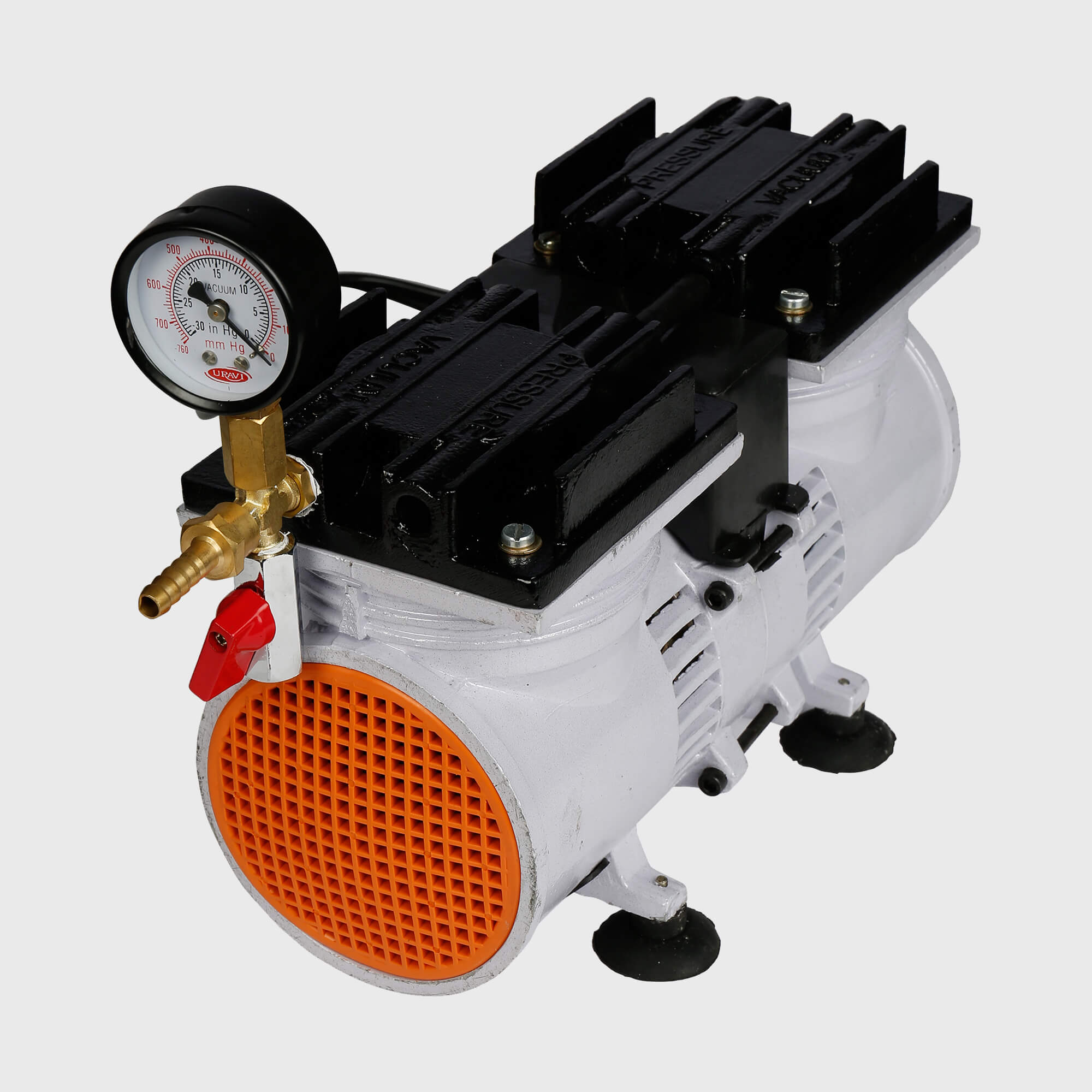

Piston Type
